Enertech Motor

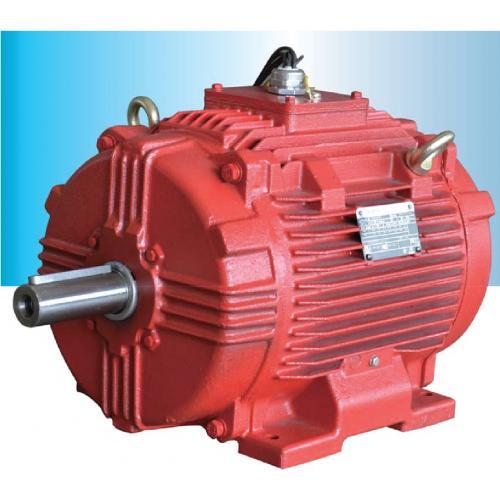

ESC SMOKE SPILL MOTOR


Main Features
HT200 gray cast iron shell
H grade insulation class
Excellent stator dipping process
IE3 efficiency
Paint color fire red RAL3001
Comply with standard GA211,EN12101-3

Nhận báo giá ngay

Design Highlights
2 meters long wire, metal screw sets
Flexible structure, providing junction box, self cooling fan optional
B3, B5, B35 installation form, 80-132 provides B34, B14 installation
Reliable insulation system
High temperature bearing

Product Range
Frame size 80-355, 0.75kW-355kW

Applicable Environment and Operating Conditions
Short-time high temperature operation

Frame

size

Environment

temperature

Duration

Insulation

level

80-355

300°

2 hours

H











Normal condition

- Altitude: less than 1000m above sea level
- Ambient temperature: below 40°C
- Working voltage and rated frequency:
 220~240V; 380~420V 50Hz
 380~420V; 660~690V 50Hz

Đang cập nhật
Thứ tự Tên catalogue Download
1 ESCSmokePillCatalogues.pdf Click download
